Rotor [MUZL600(SZLH550*170)]

Please select the accessories in the table below, referring to the structure diagram. The price in this page is unofficial virtual price. The accurate price will be offered after you place orders.

Average Customer Rating
rating
(0 Review)
add to inquiry basket
NO. ITEM ADVISE
QTY
PRICE QTY
1 Regulating nut for press roller 3 $0.00 - +
2 Assembly of roller supporting shaft 3 $0.00 - +
3 Assembly of main shaft 1 $0.00 - +
4 Driving rim of ring die 1 $0.00 - +
5 Elastic pin 8×40 3 $0.00 - +
6 Rotor 1 $0.00 - +
7 Inner seal bush 1 $0.00 - +
8 Oil seal 220×250×16 1 $0.00 - +
9 Retaining ring of bearing 1 1 $0.00 - +
10 Bearing SKF23228CC/W33 1 $0.00 - +
11 Retaining ring of bearing 1 $0.00 - +
12 Dust-proof cover 1 $0.00 - +
13 Bearing SKF23126CC/W33 1 $0.00 - +
14 Seal housing 1 $0.00 - +
15 Oil seal 180×150×15 1 $0.00 - +
16 Lock nut KM25 1 $0.00 - +
17 Nut 1 $0.00 - +
18 Key A28×80 1 $0.00 - +
19 Grease block at the rear end 1 $0.00 - +
20 Oil pipe 3 $0.00 - +
21 O-shape seal ring 125×3.55 1 $0.00 - +
22 O-shape seal ring 200×3.55 1 $0.00 - +
23 O-shape seal ring 6×1.8 3 $0.00 - +
24 O-shape seal ring 30×2.65 2 $0.00 - +
25 Grease block at the front end 1 $0.00 - +
26 Sealing disk 1 $0.00 - +
Replacement Total:
  • Overview
  • Customer Review
  • Purchasing guide
  • Delivery

Rotor of pellet mill [MUZL600(SZLH550*170)]

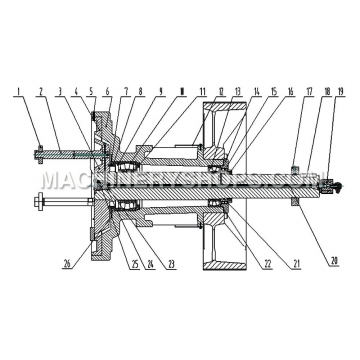

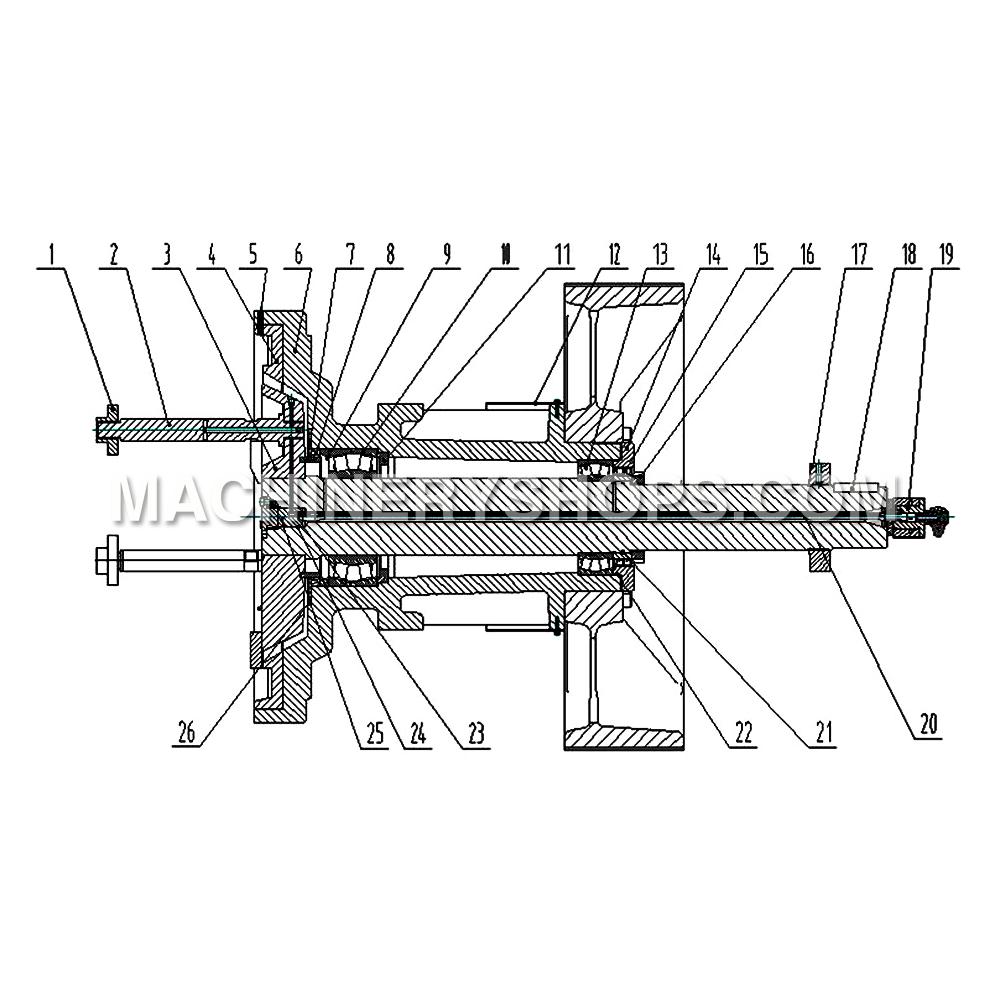

Schematic diagram of rotor structure





List of rotor structure

No.

Destination

Qty(pcs/unit)

1

Regulating nut for press roller

3

2

Assembly of roller supporting shaft

3

3

Assembly of main shaft

1

4

Driving rim of ring die

1

5

Elastic pin 8×40

3

6

Rotor

1

7

Inner seal bush

1

8

Oil seal 220×250×16

1

9

Retaining ring of bearing 1

1

10

Bearing SKF23228CC/W33

1

11

Retaining ring of bearing

1

12

Dust-proof cover

1

13

Bearing SKF23126CC/W33

1

14

Seal housing

1

15

Oil seal 180×150×15

1

16

Lock nut KM25

1

17

Nut

1

18

Key A28×80

1

19

Grease block at the rear end

1

20

Oil pipe

3

21

O-shape seal ring 125×3.55

1

22

O-shape seal ring 200×3.55

1

23

O-shape seal ring 6×1.8

3

24

O-shape seal ring 30×2.65

2

25

Grease block at the front end

1

26

Sealing disk

1
