Home >> Machinery Spare Parts >> For Grinder >> SWFP Series >> Overall structure ( SWFP 66*100C)
SKU: 50616D338ABA0

Overall structure ( SWFP 66*100C)

Please select the accessories in the table below, referring to the structure diagram. The price in this page is unofficial virtual price. The accurate price will be offered after you place orders.

Average Customer Rating
rating
(0 Review)
add to inquiry basket
NO. ITEM ADVISE
QTY
PRICE QTY
0001 Spring(1) 2 $0.00 - +
0002 Spring(2) 2 $0.00 - +
0003 Coupling 1 $0.00 - +
0004 Motor(132kW) 1 $0.00 - +
0004 Motor(160kW) 1 $0.00 - +
0005 Sealing strip 2 $0.00 - +
0006 Tensioning handle 8 $0.00 - +
0007 Safety switch 2 $0.00 - +
0008 Cushion block 2 $0.00 - +
0009 Screen plate 2 $0.00 - +
0100 Base 1 $0.00 - +
0200 Rotor 1 $0.00 - +
0300 Feed guiding mechanism 1 $0.00 - +
0400 Access door 2 $0.00 - +
0500 Screen holding-down mechanism 2 $0.00 - +
0600 Guard 1 $0.00 - +
0700 Aspiration cover 2 $0.00 - +
0800 Upper housing 1 $0.00 - +
Replacement Total:
  • Overview
  • Customer Review
  • Delivery
  • Purchasing guide

Overall structure of hammer mill SWFP 66*100C

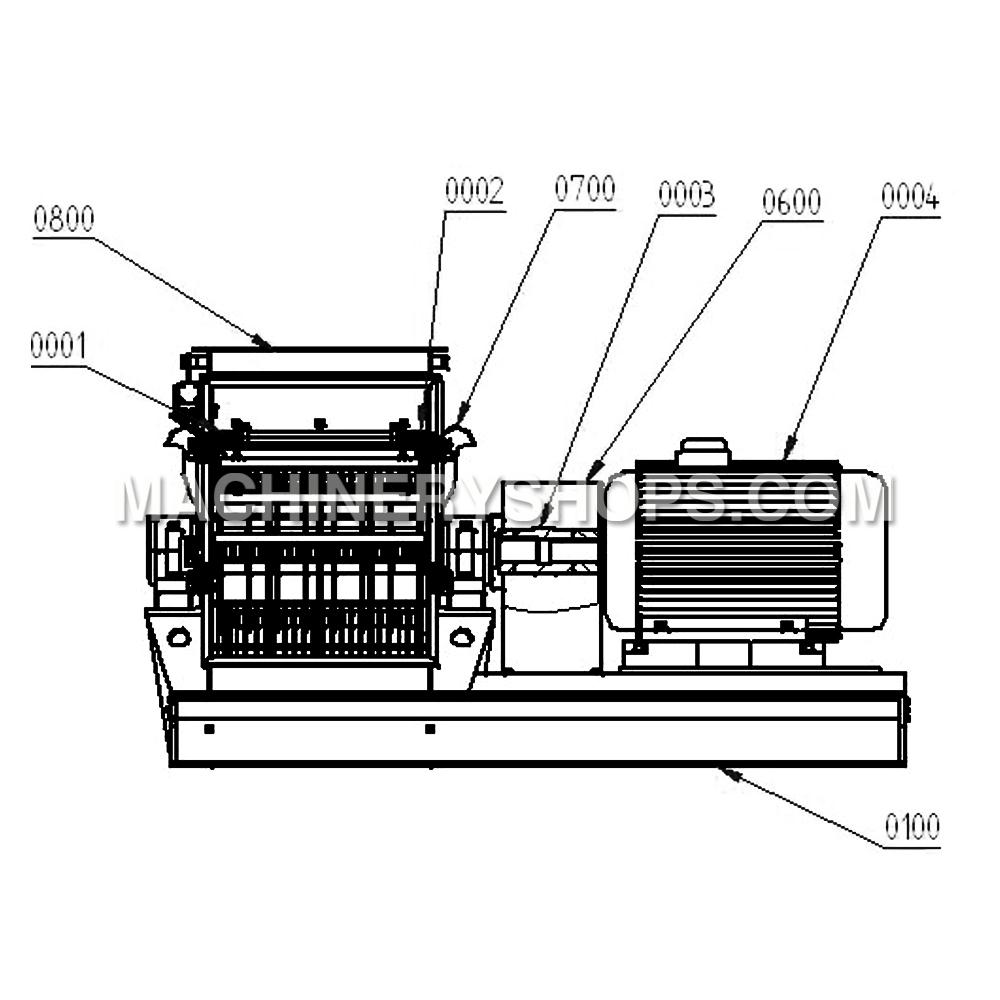

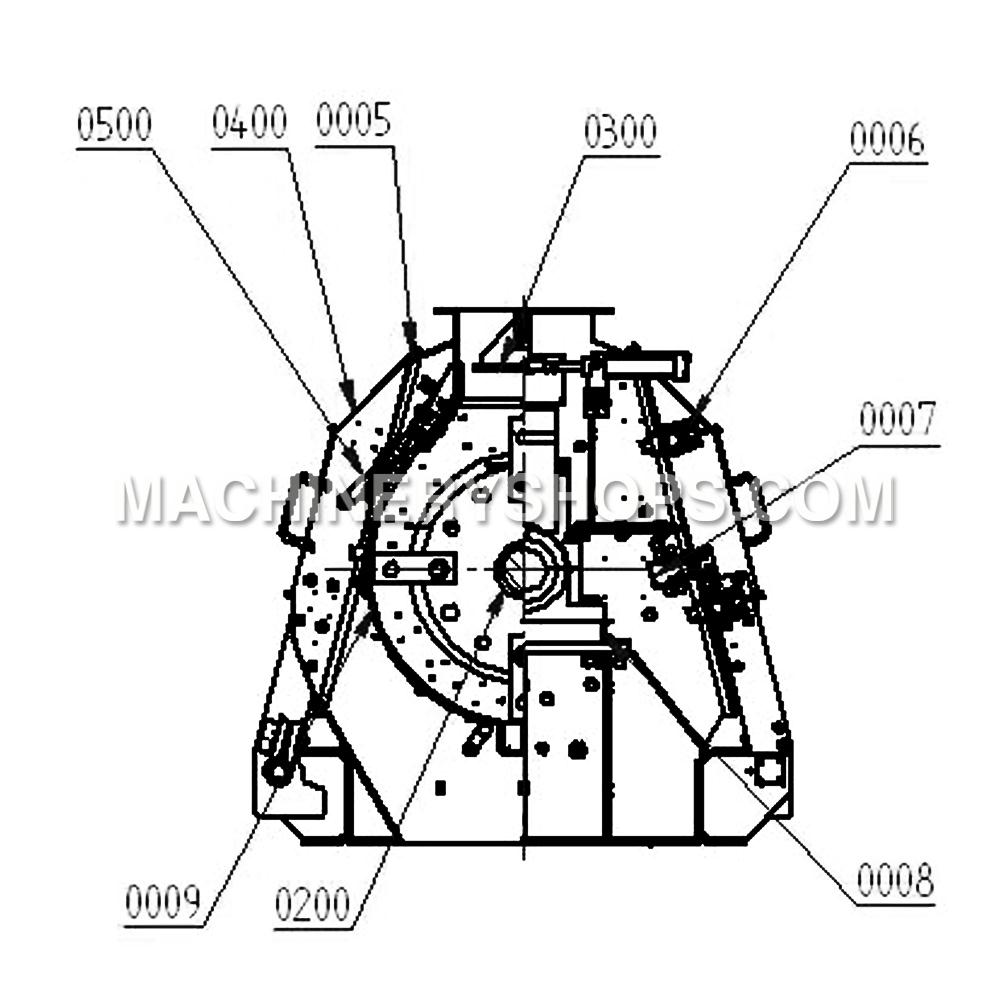

Diagram of overall structure





List of overall structure

No.

Description

Quantity(pcs/set)



0001

Spring(1)

2


0002

Spring(2)

2


0003

Coupling

1


0004

Motor(132kW)

1


Motor(160kW)

1


0005

Sealing strip

2


0006

Tensioning handle

   8


0007

Safety switch

2


0008

Cushion block

2


0009

Screen plate

2


0100

Base

1


0200

Rotor

1


0300

Feed guiding mechanism

1


0400

Access door

2


0500

Screen holding-down mechanism

2


0600

Guard

1


0700

Aspiration cover

2


0800

Upper housing

1




Note: Figures in brackets represent the corresponding motor power for the hammer mill type, the default voltage is 380V, 50HZ, and the default screen plate is of Φ1.0 holes.
