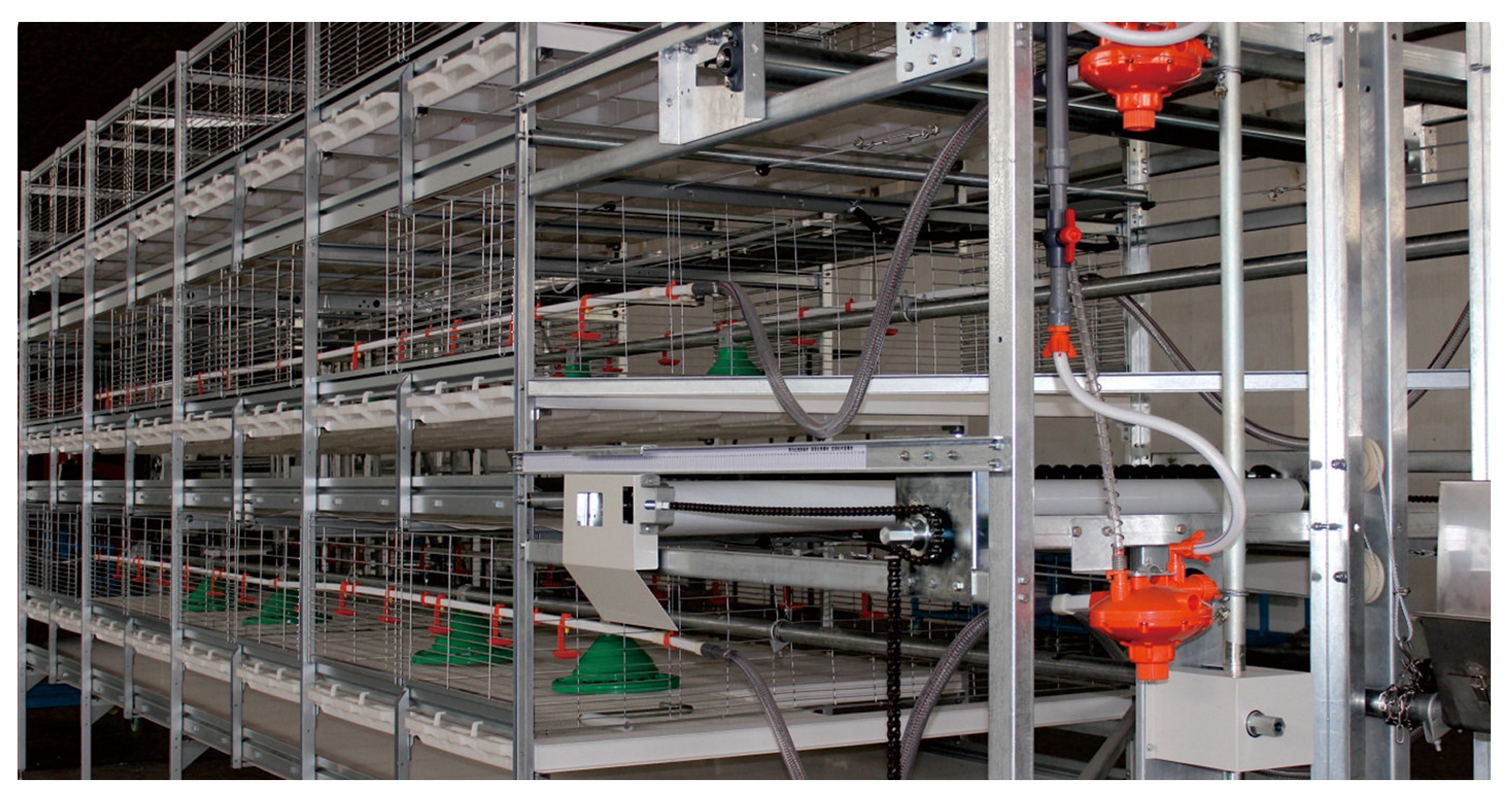

Broiler Cage System (Feed pan type)

Features

Advantages

Advanced designing concept of environmental control system meets local climate requirements.

The controller is easy to operate leading to a high degree of automation.

Reasonable grille design of feed pan can effectively reduce the waste of feed and avoid the death caused by cage stucking.

Auger imported from South Africa , effectively reduces the pellet feed breaking.

Automatic chicken move-out system to reduce labor cost.

Manure belt with disalignment device.

Double scraping manure unit.

The key components are of international well-know brands leading to stably runing.

Advanced automatic operation system ,saving labor cost .Unmanned management of environmental control system leading to safety and stability.

Advantage Description

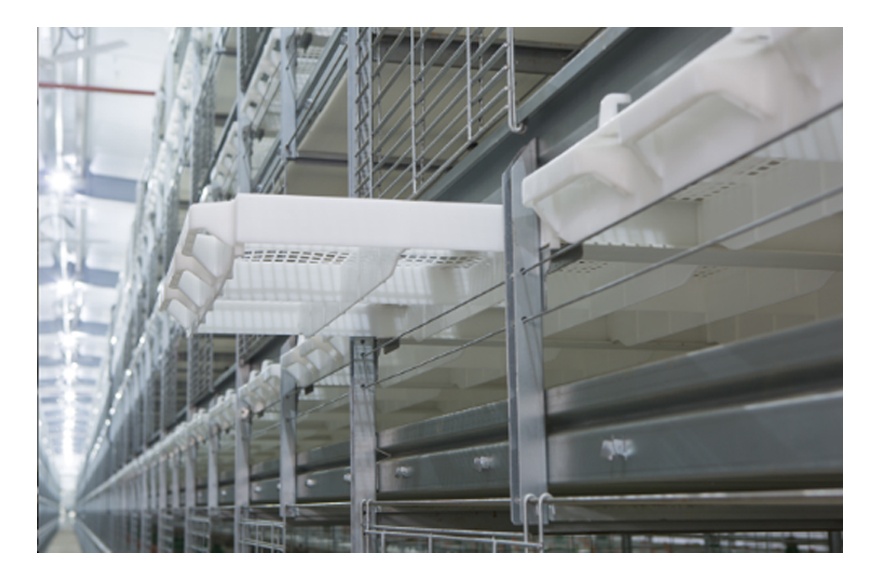

Pull and push type of slat constructure is more convenient for chicken move-out .

High rate of manure passing through, clean and dry for floor surface, providing a comfortable and clean space for chicken, reduce the infection rate of chicken feet disease.

Open structure, easy to install and disassemble.

High tensile modified plastic material, soft tensile strength and high corrosion resistance and longevity.

The tail end has a deflecting device and a anti-deflecting plate of the manure belt ,effectively prevent from the manure belt off-center.

Polyurethane scraping unit,less damage to the manure belt.

The main transmission part is 45 steel through quenching treatment, high wear resistance.

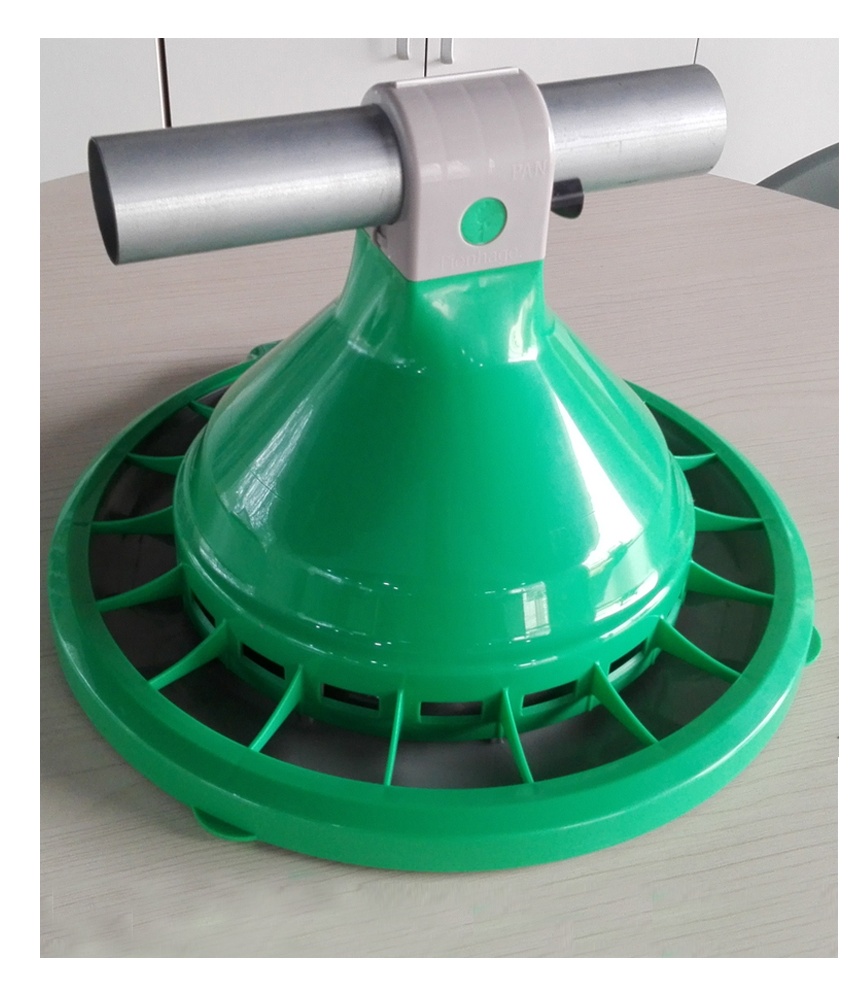

Feed Pan

Features:

Feed capacity : 55-60 birds/pan
Diameter: 355mm
Center height :220mm
Grilles: 18 grilles

Advantages:

Meeting requirement of the day-old chick feeding (height :45mm ), preventing the chicken from gathering in the pan dish and feed contamination.
Tubular structure prevents chicken entry and avoid feed waste (leakage).
Flat head design for easy up and down.(lifting range 0-240mm)

Automatic Moving-out Chicken System

Transit move-out chicken system

Features

Special PVC conveyor belt with fiber layer, featured by low shrinkage and high wear- resistance, is less affected by the climate.
Towing roller is adopted for low friction and few damage to the belt.
Low ratio of broken chicken wing due to no gap between transition joints.
High-quality winch model 1500 is featured by smooth transmission, Flexible Hand-crank .
Φ8mm steel wire and 45 steel pulley leading to safety and durability

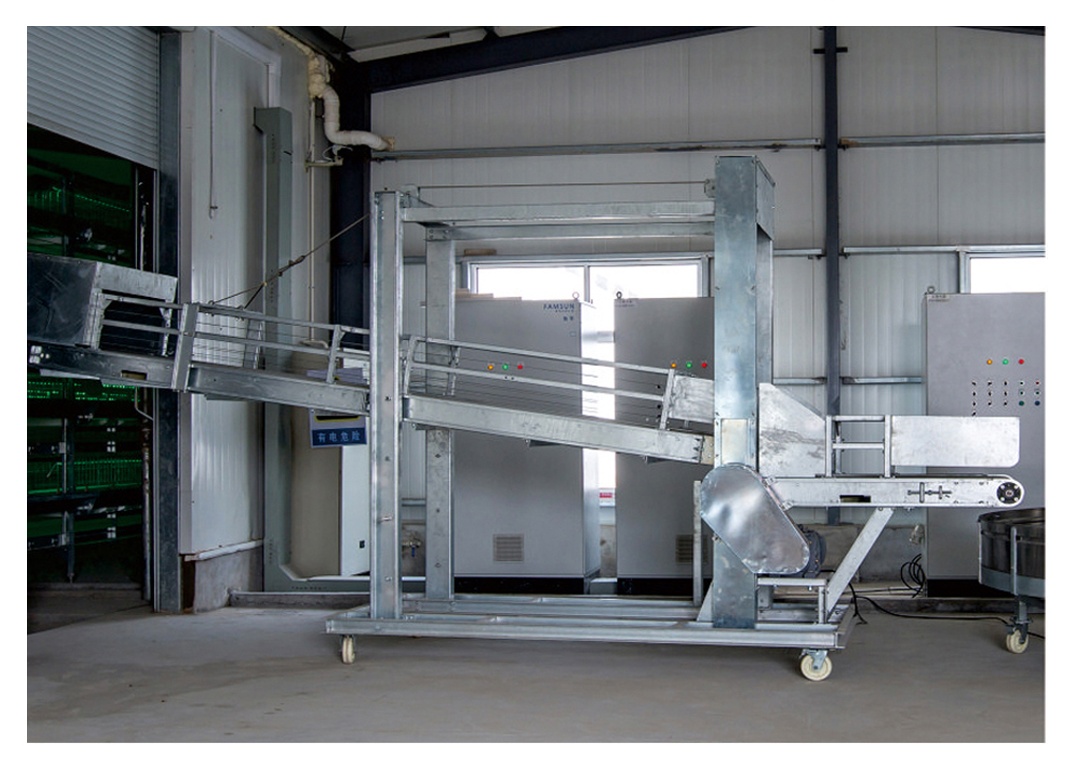

Move-out chicken system

Move-out chicken system

Features

The screw thread of lifting system is self-locking, and the moving -out chicken device is sufficiently safe without any falling risks.
With limit switch at extreme position ，system can be operated more safely .
Special PVC conveyor belt with fiber layer, featured by low shrinkage and high wear- resistance, is less affected by the climate.
Chicken moveing-out speed:6000-8000 birds/hour.
Power: 2.2kw ,IP55

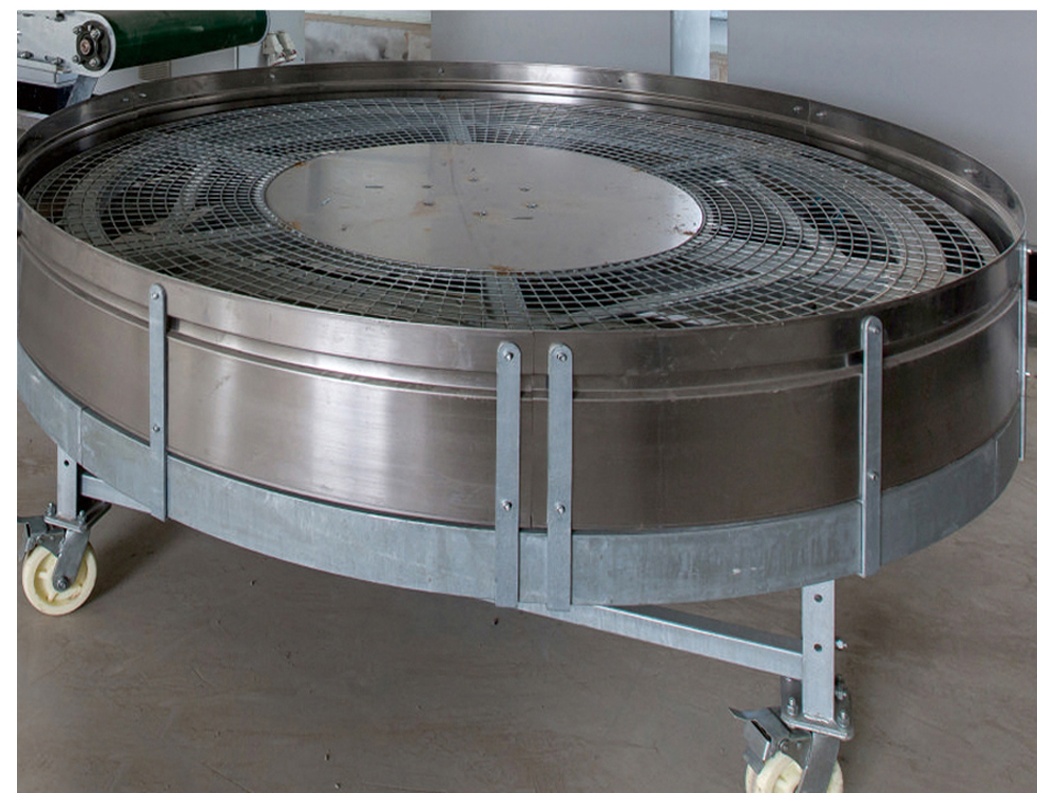

Chicken-catching round plate

Features

Ergonomic structure design is comfortable to catch chicken.
The round plate has such large space that chicken are not stacked together and have low ratio of broken chicken wing.
If the system adopts mesh structure type, it is easy to rinse and didn't have residual manure.
Stainless steel fixed sheet is safe and sturdy.
The Round plate diameter:2m/3m.
Chicken moving-out speed:6000-8000 birds/hour.
Power: 0.75kw ,IP55
